400 Ton

The variable speed function and the smart control system allow the 400T swager to utilize the power of the motor in a new way that gives superior swaging performance using less power. Furthermore, the working environment is enhanced through automatic control of the sound level, minimizing it to 50 dB when not swaging.

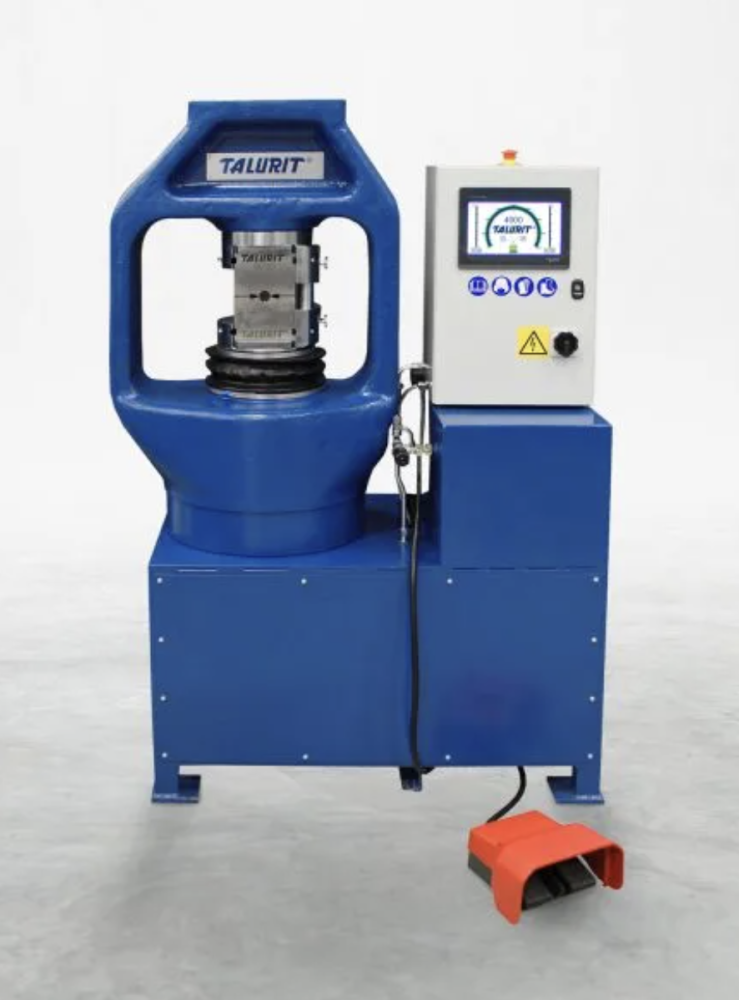

The Talurit® 400T Swager is designed for high strength, long service life and minimal maintenance. The design of the body is optimized to give open access to the swaging area, allowing for a larger space for the operator to work within. The 400T swager is also equipped with a larger die holder than what is usual for the size. This means that a greater range of die sets can be used and more importantly; the swager can handle larger ferrule sizes in multiple swage operations.

It is controlled by an electric foot pedal that permits the operator to use both hands to handle the rope assembly when swaging. In addition to the standard up/down function, the foot pedal on the 400T swager has a ‘hold’ position toggle to facilitate rope/eye adjustment and to make the tool set-up quicker. Other settings such as the pre-set swaging force, speed and return distance are all set on the touch screen.

Directly after releasing the foot pedal or when the set pressure is reached, the piston retracts in high speed to further improve the speed of the swaging cycle. After reaching the operator’s determined return distance, the hydraulic unit goes into an idle mode, dramatically reducing the sound and energy usage to a low level. When pressing the foot pedal again the hydraulic unit instantly reacts and the piston, with high acceleration, reaches the set speed.
