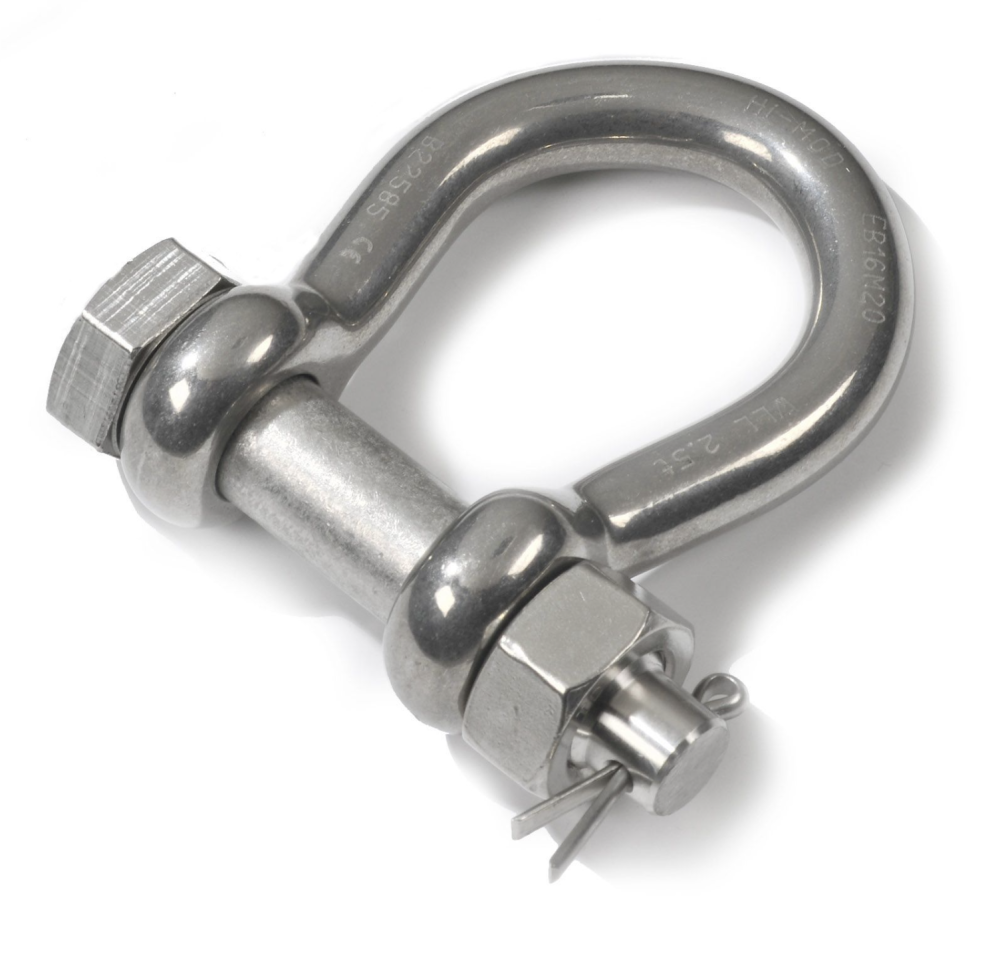

Certified stainless bow shackle / safety pin
| WLL | D | d | a | 2r | C | Weight | |
|---|---|---|---|---|---|---|---|
| ton | mm | mm | mm | mm | mm | kg/100 pieces | |
| 0,28 | 6 | M-6 | 13 | 19 | 28 | 5,2 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 0,4 | 8 | M-8 | 16 | 25 | 35 | 8,1 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 0,6 | 9,5 | M-10 | 19 | 28 | 38 | 14,7 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 0,8 | 11 | M-12 | 22 | 33 | 46 | 22,1 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 1 | 12,7 | M-12 | 26 | 38 | 52 | 35,4 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 1,5 | 14,3 | M-16 | 29 | 43 | 60 | 63,5 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 2,5 | 16 | M-20 | 32 | 50 | 68 | 80,5 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 3 | 19 | M-22 | 38 | 58 | 76 | 125 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 4 | 22 | M-24 | 44 | 66 | 88 | 182 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 4,5 | 25,4 | M-27 | 50 | 76 | 100 | 270 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 5,5 | 28,6 | M-33 | 57 | 86 | 114 | 320 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 7,5 | 31,8 | M-36 | 64 | 95 | 128 | 495 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
| 10 | 34,9 | M-39 | 70 | 105 | 140 | 540 | |
|
Certified stainless bow shackle / safety pin
|
|||||||
