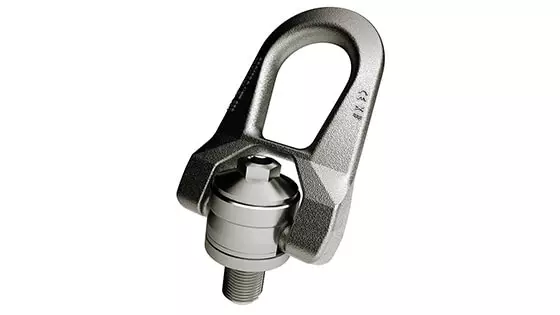

SS.DSR

İNDİR
Ürün Görseli Ürün Görseli Ürün Görseli Ürün Görseli Ürün Görseli
Ürün Görseli
Ürün Görseli
Ürün Görseli
Ürün Görseli
Ürün Görseli

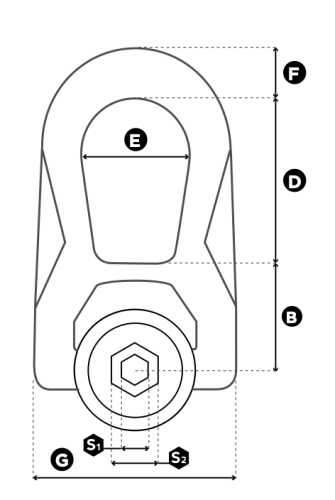

Reference Diameter SF 5:1 WLL SF 4:1 WLL Standard L1 Torque A B C D E F G H Weight
Filtreleme Tercihleri
(t)(t)(mm)(Nm)mmmmmmmmmmmmmmmm(kg)(lbs)
SS.DSR M 6 M 6 (x1) 0,10 0,15 15 4 32 30 30 39 28 13 53 9,5 0,3 0.66
SS.DSR
Reference SS.DSR M 6
Diameter M 6 (x1)
SF 5:1 WLL 0,10 (t)
SF 4:1 WLL 0,15 (t)
Standard L1 15 (mm)
Torque 4 (Nm)
A 32 mm
B 30 mm
C 30 mm
D 39 mm
E 28 mm
F 13 mm
G 53 mm
H 53 mm
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
SS.DSR M 8 M 8 (x1,25) 0,30 0,30 16 6 32 30 30 39 28 13 53 9,5 0,3 0.66
SS.DSR
Reference SS.DSR M 8
Diameter M 8 (x1,25)
SF 5:1 WLL 0,30 (t)
SF 4:1 WLL 0,30 (t)
Standard L1 16 (mm)
Torque 6 (Nm)
A 32 mm
B 30 mm
C 30 mm
D 39 mm
E 28 mm
F 13 mm
G 53 mm
H 53 mm
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
SS.DSR M 10 M 10 (x1,50) 0,50 0,50 16 10 32 30 30 39 28 13 53 9,5 0,3 0.66
SS.DSR
Reference SS.DSR M 10
Diameter M 10 (x1,50)
SF 5:1 WLL 0,50 (t)
SF 4:1 WLL 0,50 (t)
Standard L1 16 (mm)
Torque 10 (Nm)
A 32 mm
B 30 mm
C 30 mm
D 39 mm
E 28 mm
F 13 mm
G 53 mm
H 53 mm
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
SS.DSR M 12 M 12 (x1,75) 0,80 0,80 19 15 32 30 30 39 28 13 53 9,5 0,3 0.66
SS.DSR
Reference SS.DSR M 12
Diameter M 12 (x1,75)
SF 5:1 WLL 0,80 (t)
SF 4:1 WLL 0,80 (t)
Standard L1 19 (mm)
Torque 15 (Nm)
A 32 mm
B 30 mm
C 30 mm
D 39 mm
E 28 mm
F 13 mm
G 53 mm
H 53 mm
Weight 53 (kg)
Weight 53 (lbs)
İNDİR
SS.DSR M 14 M 14 (x2) 1,00 1,00 29 30 44 40 45 53 38 17 76 13 0,9 1.98
SS.DSR
Reference SS.DSR M 14
Diameter M 14 (x2)
SF 5:1 WLL 1,00 (t)
SF 4:1 WLL 1,00 (t)
Standard L1 29 (mm)
Torque 30 (Nm)
A 44 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.DSR M 16 M 16 (x2) 1,40 1,50 26 50 44 40 45 53 38 17 76 13 0,9 1.98
SS.DSR
Reference SS.DSR M 16
Diameter M 16 (x2)
SF 5:1 WLL 1,40 (t)
SF 4:1 WLL 1,50 (t)
Standard L1 26 (mm)
Torque 50 (Nm)
A 44 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.DSR M 18 M 18 (x2,5) 1,40 1,50 30 70 44 40 45 53 38 17 76 13 1,0 2.20
SS.DSR
Reference SS.DSR M 18
Diameter M 18 (x2,5)
SF 5:1 WLL 1,40 (t)
SF 4:1 WLL 1,50 (t)
Standard L1 30 (mm)
Torque 70 (Nm)
A 44 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.DSR M 20 M 20 (x2,5) 1,40 1,60 30 100 44 40 45 53 38 17 76 13 1,0 2.20
SS.DSR
Reference SS.DSR M 20
Diameter M 20 (x2,5)
SF 5:1 WLL 1,40 (t)
SF 4:1 WLL 1,60 (t)
Standard L1 30 (mm)
Torque 100 (Nm)
A 44 mm
B 40 mm
C 45 mm
D 53 mm
E 38 mm
F 17 mm
G 76 mm
H 76 mm
Weight 76 (kg)
Weight 76 (lbs)
İNDİR
SS.DSR M 22 M 22 (x2,5) 2,20 2,20 42 120 62 55 60 83 56 25 115 19 2,5 5.51
SS.DSR
Reference SS.DSR M 22
Diameter M 22 (x2,5)
SF 5:1 WLL 2,20 (t)
SF 4:1 WLL 2,20 (t)
Standard L1 42 (mm)
Torque 120 (Nm)
A 62 mm
B 55 mm
C 60 mm
D 83 mm
E 56 mm
F 25 mm
G 115 mm
H 115 mm
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
SS.DSR M 24 M 24 (x3) 2,70 2,70 42 160 62 55 60 83 56 25 115 19 2,6 5.73
SS.DSR
Reference SS.DSR M 24
Diameter M 24 (x3)
SF 5:1 WLL 2,70 (t)
SF 4:1 WLL 2,70 (t)
Standard L1 42 (mm)
Torque 160 (Nm)
A 62 mm
B 55 mm
C 60 mm
D 83 mm
E 56 mm
F 25 mm
G 115 mm
H 115 mm
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
SS.DSR M 27 M 27 (x3) 2,80 2,90 42 200 62 55 60 83 56 25 115 19 2,7 5.95
SS.DSR
Reference SS.DSR M 27
Diameter M 27 (x3)
SF 5:1 WLL 2,80 (t)
SF 4:1 WLL 2,90 (t)
Standard L1 42 (mm)
Torque 200 (Nm)
A 62 mm
B 55 mm
C 60 mm
D 83 mm
E 56 mm
F 25 mm
G 115 mm
H 115 mm
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
SS.DSR M 30 M 30 (x3,5) 3,00 3,50 47 250 62 55 60 83 56 25 115 19 2,8 6.17
SS.DSR
Reference SS.DSR M 30
Diameter M 30 (x3,5)
SF 5:1 WLL 3,00 (t)
SF 4:1 WLL 3,50 (t)
Standard L1 47 (mm)
Torque 250 (Nm)
A 62 mm
B 55 mm
C 60 mm
D 83 mm
E 56 mm
F 25 mm
G 115 mm
H 115 mm
Weight 115 (kg)
Weight 115 (lbs)
İNDİR
