Din6899 C

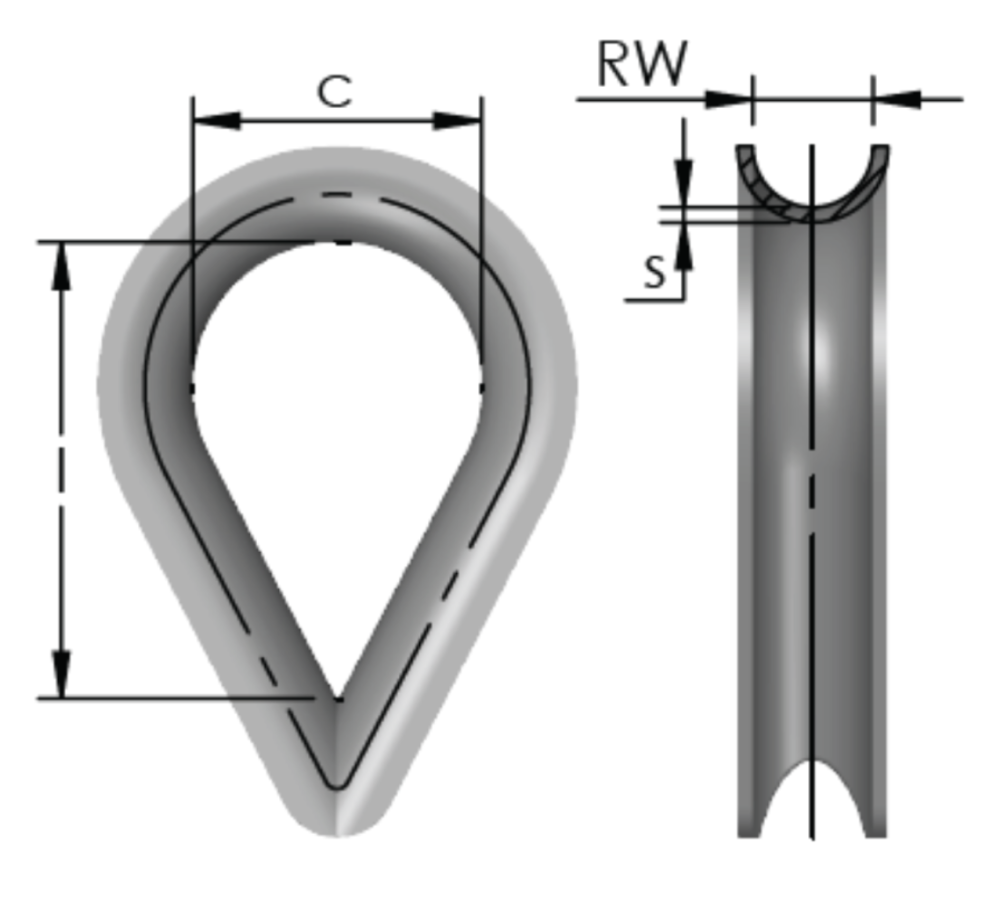

Ürün Görseli
nominal size RW groove RW c l ca. mm approx. s weight per 100 pcs.
mmmmmmmmkg
11 12 27,5 59 6,5 20,0
Din6899 C
nominal size 11
RW groove RW 12 mm
c 27,5 mm
l ca. mm approx. 59 mm
s 6,5 mm
weight per 100 pcs. 20,0 kg
12 13 30 64 7 23,0
Din6899 C
nominal size 12
RW groove RW 13 mm
c 30 mm
l ca. mm approx. 64 mm
s 7 mm
weight per 100 pcs. 23,0 kg
14 15 35 75 8 39,0
Din6899 C
nominal size 14
RW groove RW 15 mm
c 35 mm
l ca. mm approx. 75 mm
s 8 mm
weight per 100 pcs. 39,0 kg
16 18 40 86 9,5 59,0
Din6899 C
nominal size 16
RW groove RW 18 mm
c 40 mm
l ca. mm approx. 86 mm
s 9,5 mm
weight per 100 pcs. 59,0 kg
18 20 45 96 11 79,0
Din6899 C
nominal size 18
RW groove RW 20 mm
c 45 mm
l ca. mm approx. 96 mm
s 11 mm
weight per 100 pcs. 79,0 kg
20 22 50 107 12 113,5
Din6899 C
nominal size 20
RW groove RW 22 mm
c 50 mm
l ca. mm approx. 107 mm
s 12 mm
weight per 100 pcs. 113,5 kg
22 24 55 118 13 147,0
Din6899 C
nominal size 22
RW groove RW 24 mm
c 55 mm
l ca. mm approx. 118 mm
s 13 mm
weight per 100 pcs. 147,0 kg
24 26 60 128 14,5 198,0
Din6899 C
nominal size 24
RW groove RW 26 mm
c 60 mm
l ca. mm approx. 128 mm
s 14,5 mm
weight per 100 pcs. 198,0 kg
26 28 65 139 15,5 212,0
Din6899 C
nominal size 26
RW groove RW 28 mm
c 65 mm
l ca. mm approx. 139 mm
s 15,5 mm
weight per 100 pcs. 212,0 kg
28 31 70 150 17 313,5
Din6899 C
nominal size 28
RW groove RW 31 mm
c 70 mm
l ca. mm approx. 150 mm
s 17 mm
weight per 100 pcs. 313,5 kg
32 35 80 171 19 373,0
Din6899 C
nominal size 32
RW groove RW 35 mm
c 80 mm
l ca. mm approx. 171 mm
s 19 mm
weight per 100 pcs. 373,0 kg
36 40 90 192 21,5 580,0
Din6899 C
nominal size 36
RW groove RW 40 mm
c 90 mm
l ca. mm approx. 192 mm
s 21,5 mm
weight per 100 pcs. 580,0 kg
40 44 100 214 24 836,5
Din6899 C
nominal size 40
RW groove RW 44 mm
c 100 mm
l ca. mm approx. 214 mm
s 24 mm
weight per 100 pcs. 836,5 kg
44 48 110 235 26,5 993,5
Din6899 C
nominal size 44
RW groove RW 48 mm
c 110 mm
l ca. mm approx. 235 mm
s 26,5 mm
weight per 100 pcs. 993,5 kg
48 53 120 257 29 1164,0
Din6899 C
nominal size 48
RW groove RW 53 mm
c 120 mm
l ca. mm approx. 257 mm
s 29 mm
weight per 100 pcs. 1164,0 kg
